Skin Rejuvenation Device Reduction of Pigmented Lesions Lightens Pigment and Improves Skin Tone M22
Skin Rejuvenation Device Reduction of Pigmented Lesions Lightens Pigment and Improves Skin Tone M22

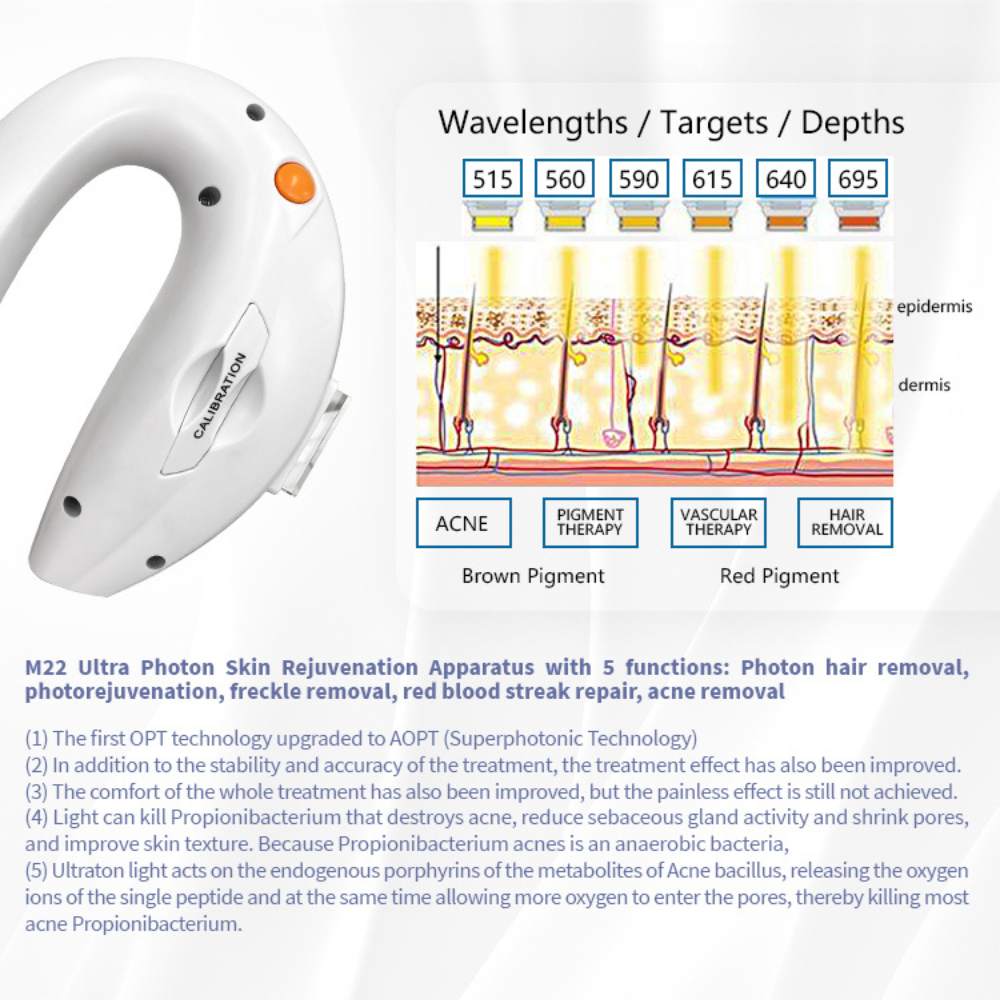

1. Technology Principle
TheGMS M22 2 in 1 system integrates advanced IPL technology and a professional Nd YAG laser system into one intelligent platform. The Intense Pulsed Light (IPL) module operates within a spectrum of 515-1200nm, using precision cut-off filters to target hair follicles, pigmentation, and vascular lesions. The Q-Switched Nd YAG laser delivers high-peak energy in short pulses, effectively shattering dermal and epidermal pigment without harming surrounding tissue. Together, these technologies provide non-invasive skin rejuvenationandefficient tattoo removal solutions, ensuring safe, effective treatments for all skin types.
2. Application Range
TheM22 2 in 1 multifunctional system is widely applied in professional clinics, medical spas, and beauty centers. It is ideal for:
Permanent hair removal treatment
Skin rejuvenation therapy (carbon peeling)
Reduction of pigmented lesions
Anti-wrinkle laser therapy
Acne treatment solution
Freckle and vascular lesion removal
Tattoo and semi-permanent makeup removal
Thisversatile laser system offers reliable and safe solutions for both aesthetic and therapeutic skin needs.
3. Product Attributes
| Parameter | Specification |
|---|---|
| Main Drive Power | 2000W |
| Handle | Dual Handles (IPL + Nd YAG Laser) |
| IPL Wavelength | 515-1200nm |
| IPL Filters | 9 filters (515nm, 560nm, 590nm, 615nm, 640nm, 695nm, 755nm, Acne, Vascular) |
| Energy Density (IPL) | 10-35J/cm² |
| Pulse Duration (IPL) | 1-9ms |
| Pulse Repetition Rate (IPL) | 1-10Hz |
| Nd YAG Laser Energy | 1-14J/cm² |
| Nd YAG Laser Spot Size | 2-8mm adjustable |
| Nd YAG Laser Frequency | 1-10Hz |
| Cooling System | Contact cooling + Air cooling + Closed water circulation cooling |
| Display | 8.4” True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Stand-by Working Time | Continuously for 12 hours |

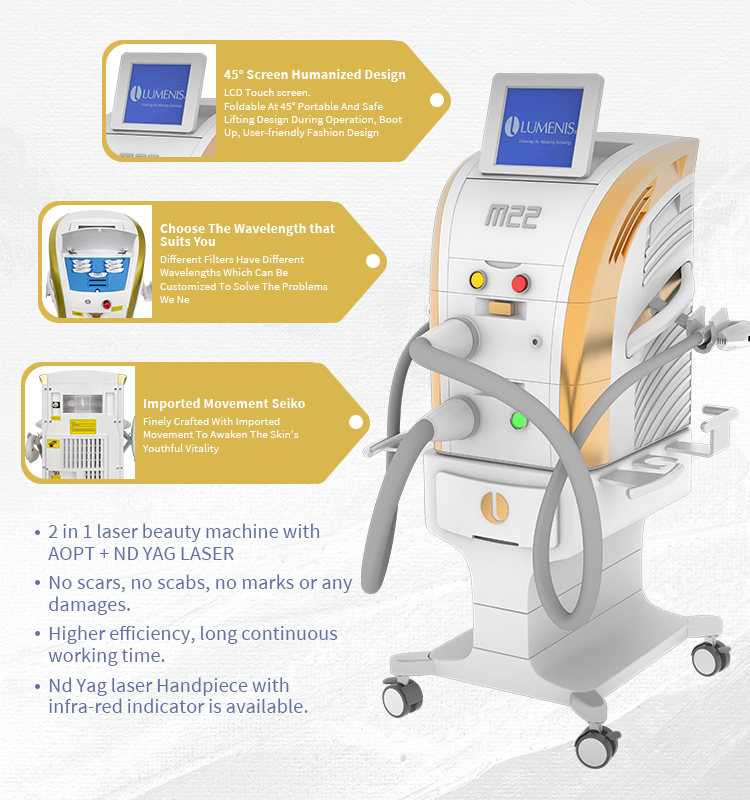

4. Product Details
Equipped with dual-laser technology for customizable treatments.

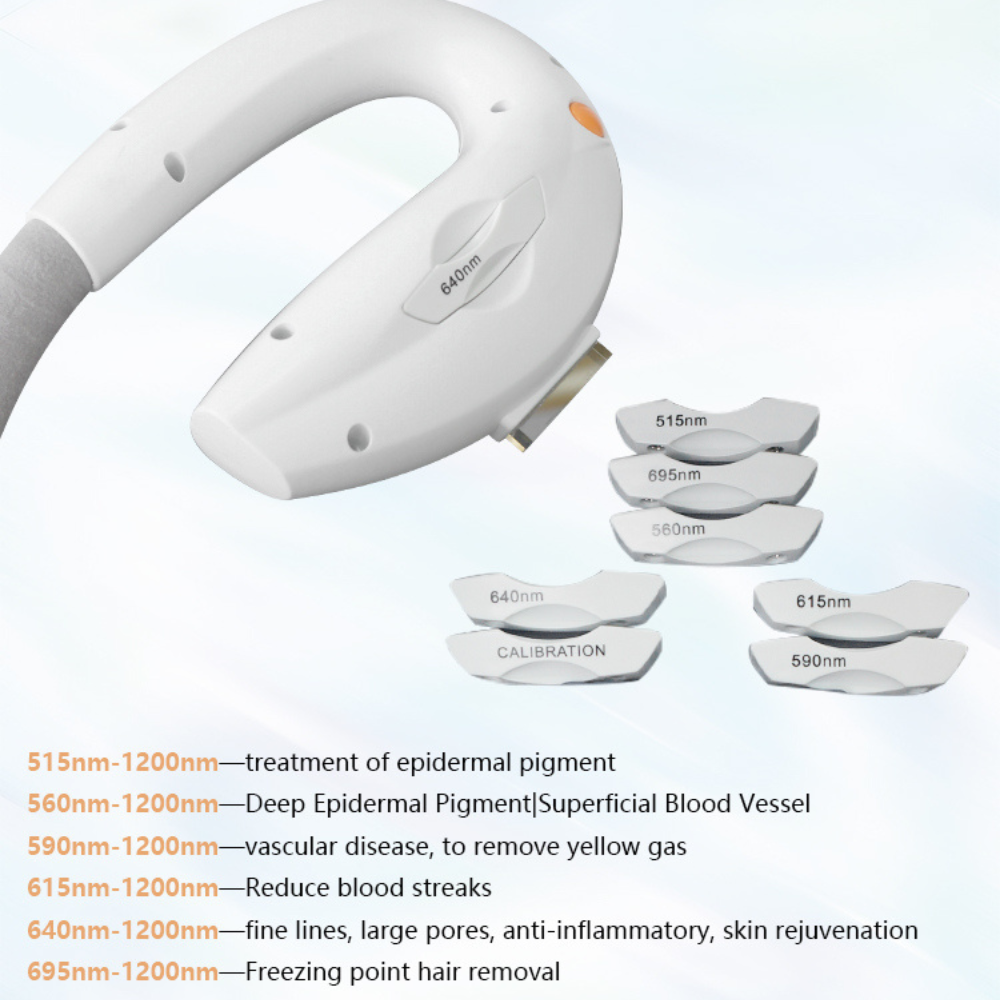

Interchangeable IPL filters for precise targeting of multiple skin concerns.
5 Nd YAG laser heads (532nm, 1064nm, 1320nm, plus two non-invasive options) for treating different pigmentation depths.
Contact cooling technology maintains epidermal protection and client comfort.
Large touch screen control panel ensures easy, intuitive operation.
High power output IPL module delivers rapid, effective hair reduction results.
5. Pre & Post Treatment Advice
Pre-treatment:
Avoid sun exposure, tanning beds, and chemical peels 2 weeks before the session.
Shave hair in the treated area 24 hours prior.
Post-treatment:
Avoid sun exposure and hot baths for 48 hours.
Apply soothing cream and sunblock SPF 50+.
Do not scratch or exfoliate the treated area.
6. Contraindications
Pregnancy or breastfeeding.
Active skin infections or open wounds.
Photosensitivity disorders.
History of keloid scarring.
Recent use of photosensitizing drugs.
